Overview

ISO 9001:2008 Certified

Mag-Drive Close Couple SM200 Series

Mag-Drive Close Couple SM400 Series

Mag-Drive Close Couple SM900 Series

Mag-Drive Close Couple RM100 Series

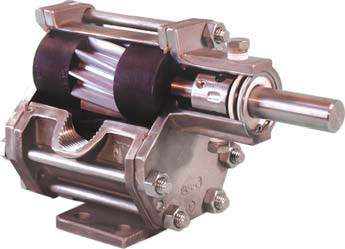

Metallic S200 Series Cutway

Metallic R100 Series

Metallic S900 Series

Non-Metallic Ryton S900

Non-Metallic Ryton S200

Chemsteel Features

Materials of Construction

  • Flows from 0.5 to 30 GPM at 1750 RPM
  • Pressure from 0 to 150 PSI
  • Gear & bearing combinations of metallic and nonmetallic wear surfaces.
  • Slotted bearings to lubricate shaft and gear surfaces.
  • Hydraulic porting to balance axial thrust and to reduce wear.
  • Ample port sizing to reduce the likelihood of cavitation when inlet pressure is marginal.
  • Effective housing seals with elastic memory prevent leakage of corrosives.
  • Recirculation heat port versatility.
  • Containment can flush and drain connections.
  • 316 Stainless Steel
  • Alloy C
  • Non-Metallic - Ryton
  • Packing - Lip - Mechanical - Seal-less
  • NEMA Close Coupled Adapters
  • Accessories

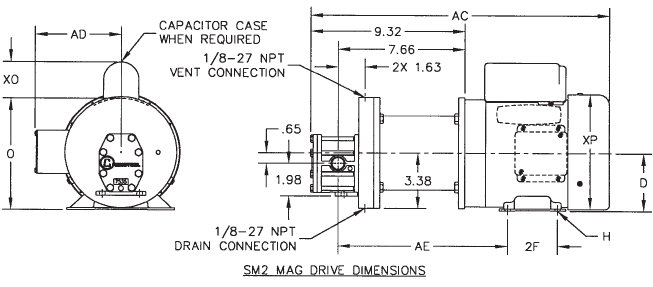

Seal-Less Magnetic Drive SM207 Pump Dimensions

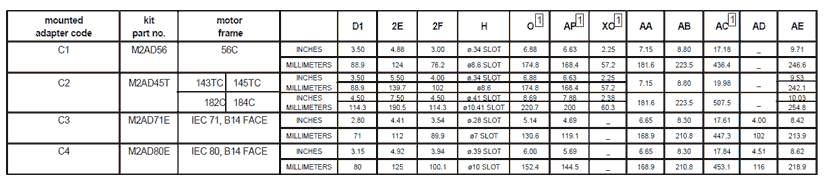

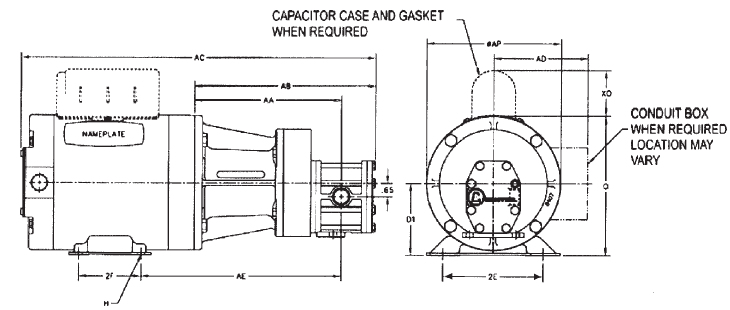

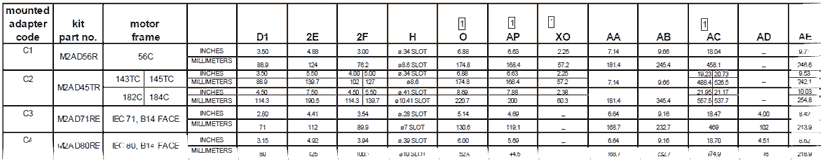

S207 Metallic Close Coupled Pump Dimensions

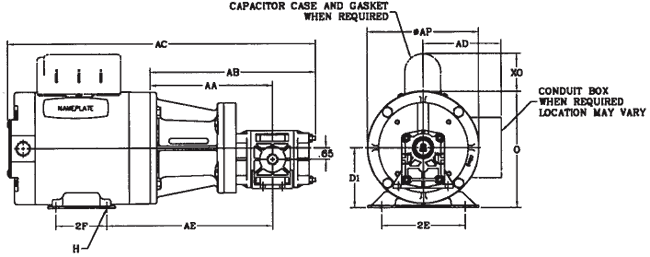

S207 Non-Metallic Close Coupled Pump Dimensions
