Heavy Duty Mag Drive Pump | Low Flow Mag Drive Pump

Magnetic Drive Sealless Pump

For Quality Management System:
(Applicable for IAS Accredited Certification)

ISO logo
ISO logo

ISO 9001: Registered

The MMP Series magnetically driven, sealless, centrifugal pumps are heavy-duty mag-drive pumps with superior SiC-X bearing materials for low flow applications. These close coupled pumps are similar in construction to the MPL/MP Series, except the shaft is stationary and the suction/discharge ports are male NPT with optional flanges available.

Magnatex® MMP Series

The MMP Series pumps are high-quality, dependable, long-lasting pumps utilizing our exclusive straddle bearing design and furnished with the shaft, thrust ring and bushing made of sintered silicon carbide material. Sealless pumps help eliminate "Reportable Release" issues.

All Magnatex pumps and spare parts come with a 1-year unconditional warranty on materials and workmanship.

  • Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce "Reportable Release" issues.
  • No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
  • Straddle-mounted inner magnet system with bearings on both sides of the magnet - this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
  • Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
  • Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 5% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
  • Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
  • Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals

Materials of Construction

  • 316 SS
  • Ceramic or Stainless Steel Shaft Option
  • Optional high-pressure models for suction conditions to 2,500 psi and more

Connect with a Magnatex representative to learn more about our products or to request a quote.

Contact Us

MAGNATEX® MMP Series Specifications

Maximum Flow 20 GPM
Maximum Head 95 FT
Liquid Temperature -112° F to 536° F
Maximum Power 3/4 HP
Connections NPT or Optional Flanges
Bearings SiC/SiC-X Standard
Maximum Pressure 145 psig
Impeller Enclosed
Speeds Up to 3550 rpm
Magnets Neodymium / Samarium Cobalt
Motor NEMA or IEC Frame Mounted
Shaft 316 SS, SiC

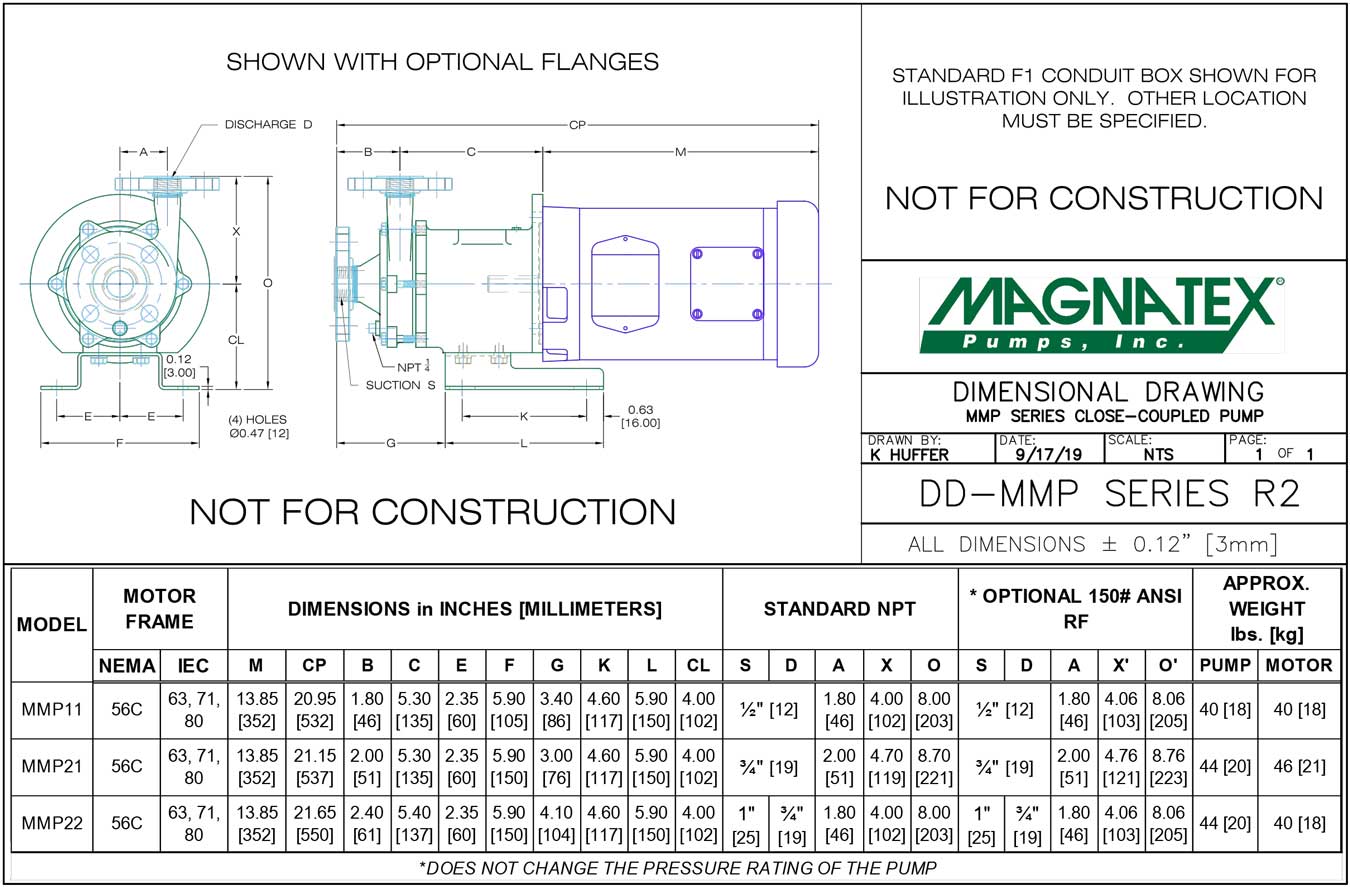

MAGNATEX® MMP Series Component View

Optional high-pressure models for suction conditions to 5,000 psi and more
