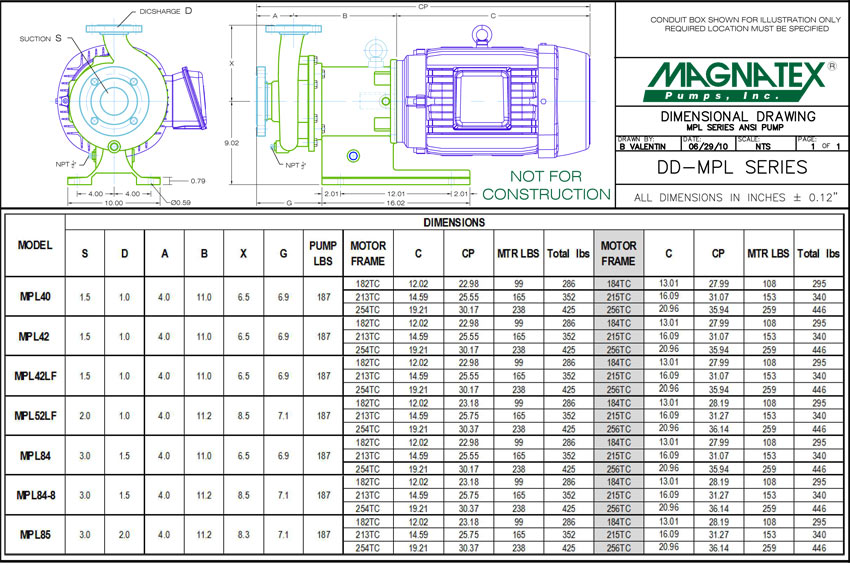

Close coupled, compact, MPL Series pumps are the efficient and dependable choice for medium to high head applications. The process side of the MPL pump conforms to ANSI B73.3 dimensions. Affordable, high performance Magnatex pumps give you higher efficiency with lower first cost, lower horsepower and a lower total cost of ownership.

MPL Series Pumps

Magnetic Drive Pumps

  • Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce "Reportable Release" issues.
  • No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
  • Optional SiC-X bearing system for enhanced dry running capability

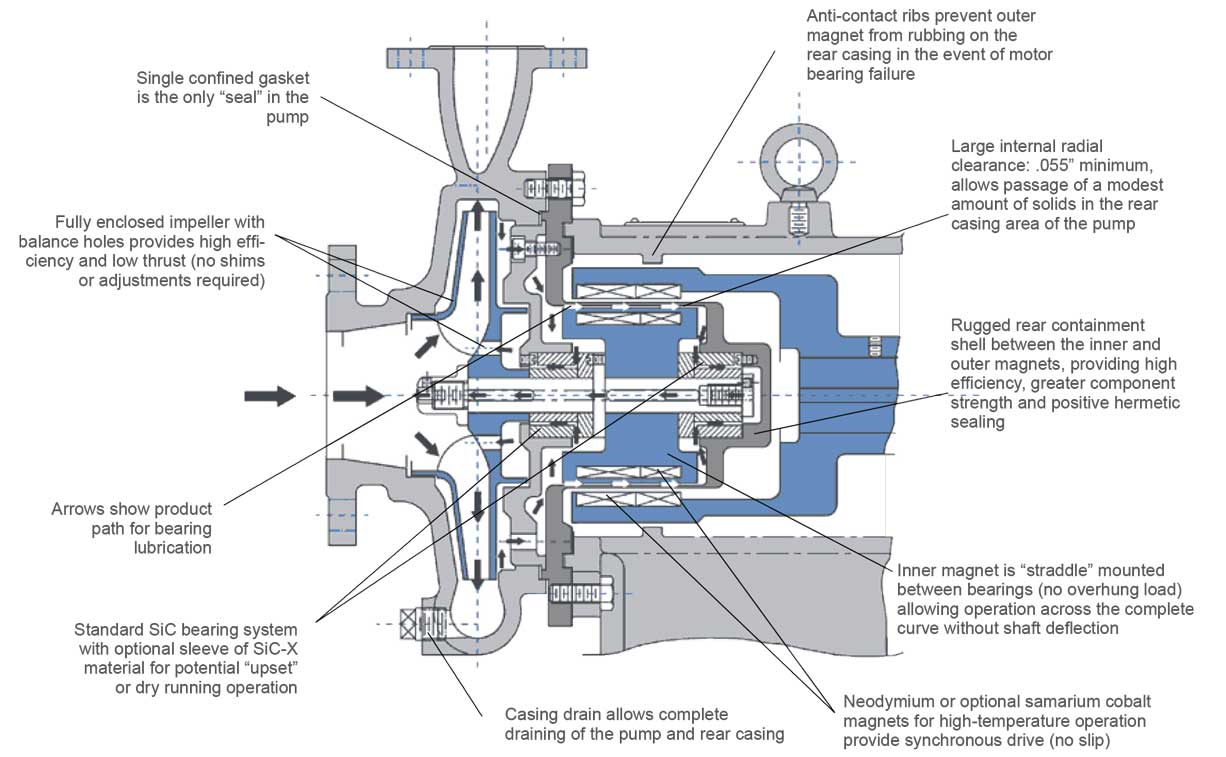

  • Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors' typical cantilevered, overhung designs
  • Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
  • Close-coupled configuration eliminates coupling and motor alignment issues
  • Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
  • Optional high temperature construction to handle up to 660°F
  • Optional baffled rear casing design for enhanced solids handling
  • Large internal flow path handles solids: 1% at 500µ; 5% at 100µ

Materials of Construction

  • 316SS
  • 304SS
  • Alloy 20
  • Alloy B&C

  • Optional high-pressure models for suction conditions to 5,000 psi and more

Connect with a Magnatex representative to learn more about our products or to request a quote.

Contact Us

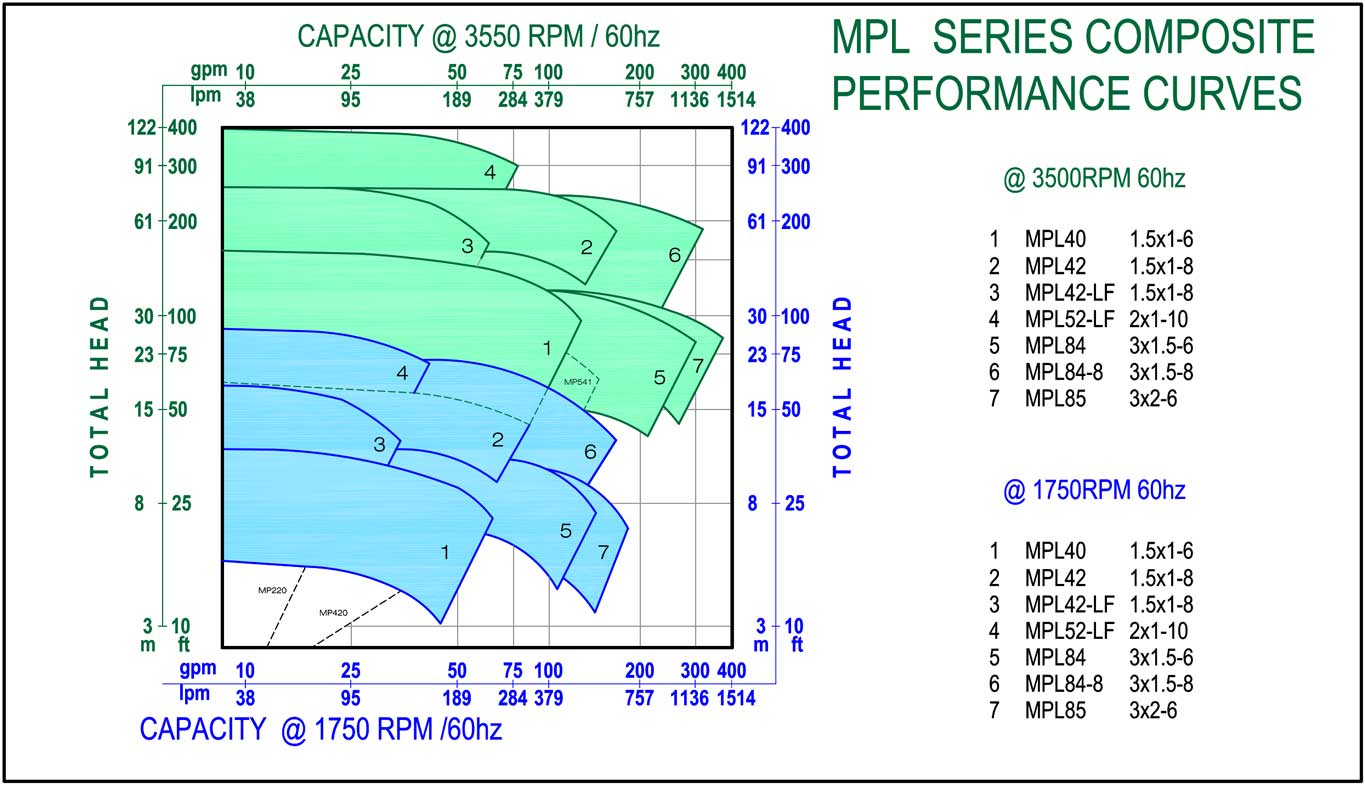

MAGNATEX® MPL/MHL Series Specifications

Maximum Flow 340 GPM
Maximum Head 400 FT
Liquid Temperature -112° F to 660° F
Maximum Power 20 HP
Connections 150# RF Flanges or 300# RF optional
Bearings SiC or SiC-X Optional
Working Pressure 170 or 225 psig
Impeller Enclosed
Speeds Up to 3550 rpm
Magnets Neodymium or Samarium Cobalt
Motor NEMA or IEC Frame Mounted
