Close Coupled Compact Medium Flow Medium Head Application Pump

Magnetic Drive sub-ANSI Pumps

ISO logo
ISO logo

ISO 9001: Registered

Close-coupled, compact, MP Series pumps are the efficient and dependable choice for medium-flow, medium-head applications. The MP Series pump features sub-ANSI sizes for efficient lower flow applications. Affordable, high-performance Magnatex® pumps give you higher efficiency with lower horsepower and a lower total cost of ownership.

MAGNATEX® MP Series

Materials of Construction

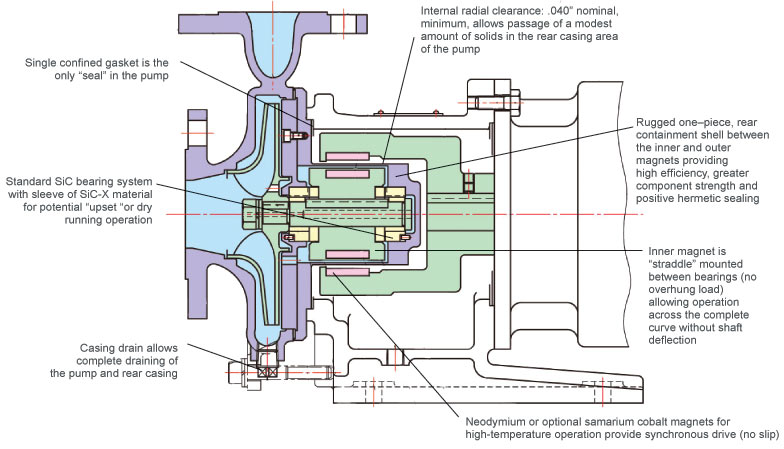

  • Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce "Reportable Release" issues.
  • No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
  • Standard SiC-X bearing system for enhanced dry running capability
  • Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors typical cantilevered, overhung designs
  • Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
  • Large internal flow path handles solids: 1% at 500µ 5% at 100µ.
  • Close-coupled configuration eliminates coupling and motor alignment issues.
  • Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
  • Optional high-temperature construction to handle up to 660°F without cooling liquid

Materials of Construction

  • 316SS
  • Alloy 20
  • Alloy B&C


Connect with a Magnatex representative to learn more about our products or to request a quote.

Contact Us

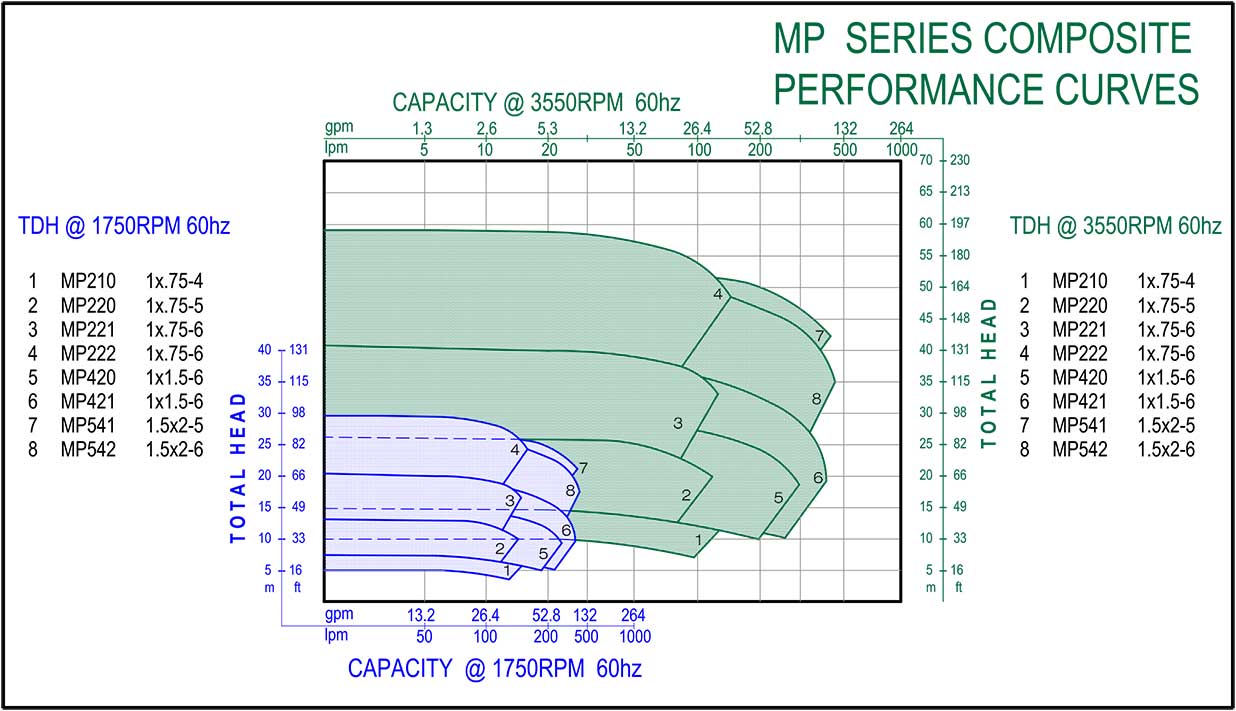

MAGNATEX® MP Series Specifications

Maximum Flow 150 GPM
Maximum Head 190 FT
Liquid Temperature -112° F to 660° F
Maximum Power 5 HP
Connections 150# RF Flanges
Bearings SiC/SiC-X
Working Pressure 150 psig
Impeller Enclosed
Speeds Up to 3550 rpm
Magnets Neodymium or Samarium Cobalt
Motor NEMA or IEC Frame Mounted
