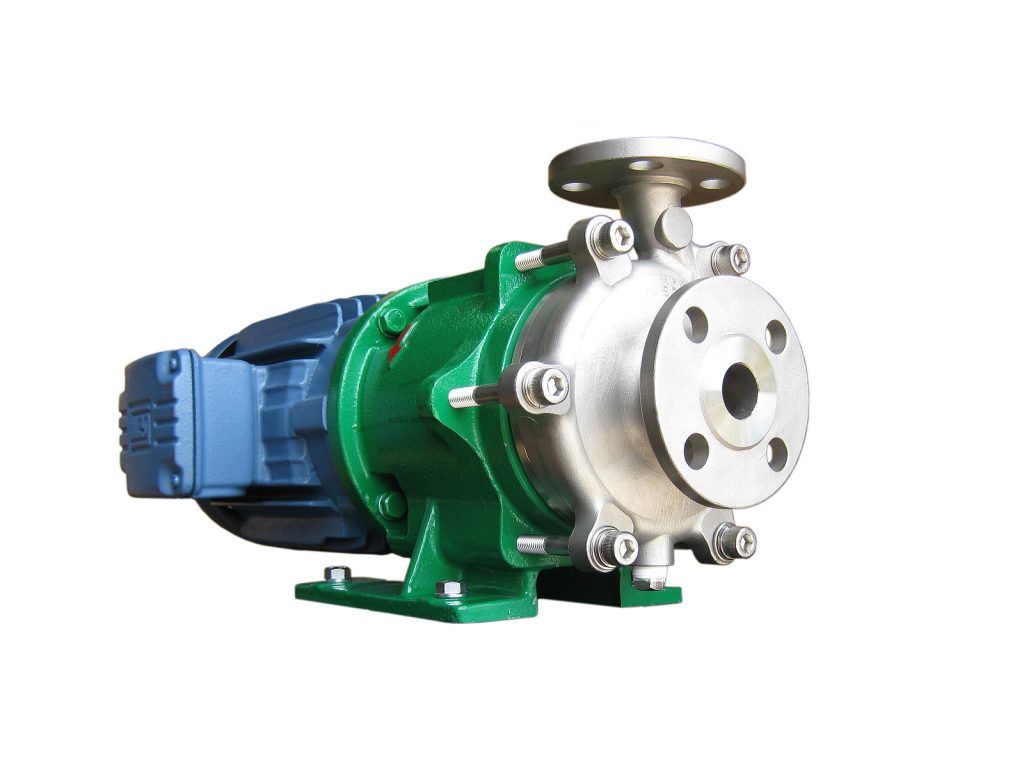

MAGNETIC DRIVE SUB-ANSI PUMPS

Close-coupled, compact, MP Series pumps are the efficient and dependable choice for medium-flow, medium-head applications. The MP Series pump features sub-ANSI sizes for efficient lower flow applications. Affordable, high-performance Magnatex® pumps give you higher efficiency with lower horsepower and a lower total cost of ownership.

MAGNATEX® MP Series Specifications

Maximum Flow340 GPM
Maximum Head400 FT
Liquid Temperature-112° F to 660° F
Maximum Power20 HP
Connections150# RF Flanges
BearingsSiC/SiC-X
Working Pressure150 psig
ImpellerEnclosed
SpeedsUp to 3550 rpm

MAGNATEX® MP Series

Materials of Construction

  • Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
  • No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
  • Standard SiC-X bearing system for enhanced dry running capability
  • Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors typical cantilevered, overhung designs
  • Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
  • Large internal flow path handles solids: 1% at 500µ 8% at 100µ.
  • Close-coupled configuration eliminates coupling and motor alignment issues.
  • Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment
  • Optional high-temperature construction to handle up to 660°F
  • Optional baffled rear casing design for enhanced solids handling

Materials of Construction

  • 316SS
  • Alloy 20
  • Alloy B&C
  • Optional high-pressure models for suction conditions to 5,000 psi and more
