Pharmaceutical Pumps

For Quality Management System:
(Applicable for IAS Accredited Certification)

ISO 9001: Registered

Compact MPL/MP Series pumps are the efficient and dependable choice for medium-flow, medium to high head applications. MPL Series pumps' process side conforms to ANSI B73.3 dimensions. MP Series pumps feature sub-ANSI sizes for efficient lower flow applications. Affordable, top-performing Magnatex pumps give you higher efficiency with lower horsepower and lower total cost of ownership. These stainless steel pumps are often used as pharmaceutical pumps.

Products - MPL / MP Series

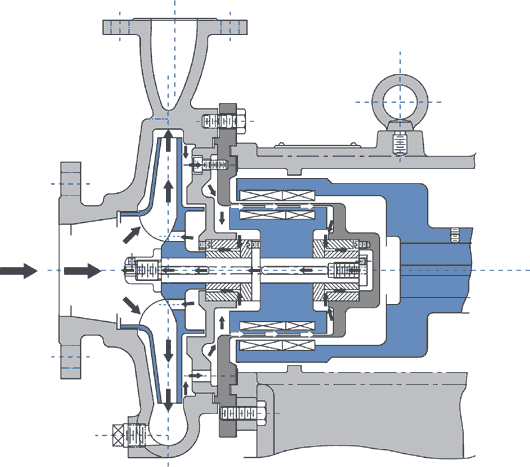

The straddle-mounted double bearing design reduces shaft load and bearing wear over typical cantilevered, overhung designs.

Materials of Construction

316 Stainless Steel
Alloy 20
Titanium

Connect with a Magnatex representative to learn more about our products or to request a quote. Contact Us

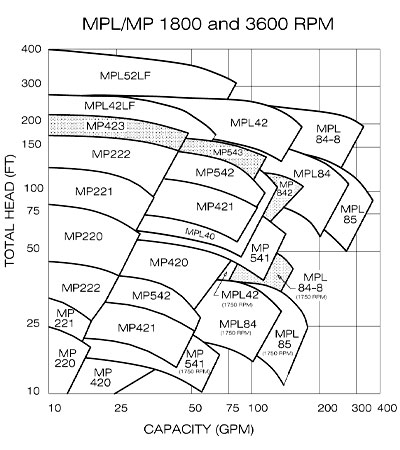

Specifications

Maximum Flow	150 gpm
Maximum Head	190 feet TDH
Temperature	-112° to 660°F
Maximum Power	5 hp
Connections	150 LB RF Flanges
Bearings	SiC/Sic-X Standard
Impeller	Enclosed
Speeds	up to 3550 rpm
Magnets	Neodymium or Samarium Cobalt
Motor	NEMA or IEC Frame Mounted

Click to view the "Magnatex® MP Series Pump Repair Video"
