Magnetic Drive Fluoropolymer Lined Pumps

ISO logo

ISO 9001:2015 Certified

Magnatex®/Texel® ME Series sub-ANSI pumps are dependable, durable, replaceable liner, magnetic drive pumps. They are the solution for low to medium flow, corrosive fluid applications. These pumps provide a lifetime of maintenance-free operation with low initial cost and low total cost of ownership. Replaceable liners make repairs easy and inexpensive without special tooling required. Sealless design helps eliminate "Reportable Release" issues.

Magnatex ME Series

  • Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce "Reportable Release" issues.
  • No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.

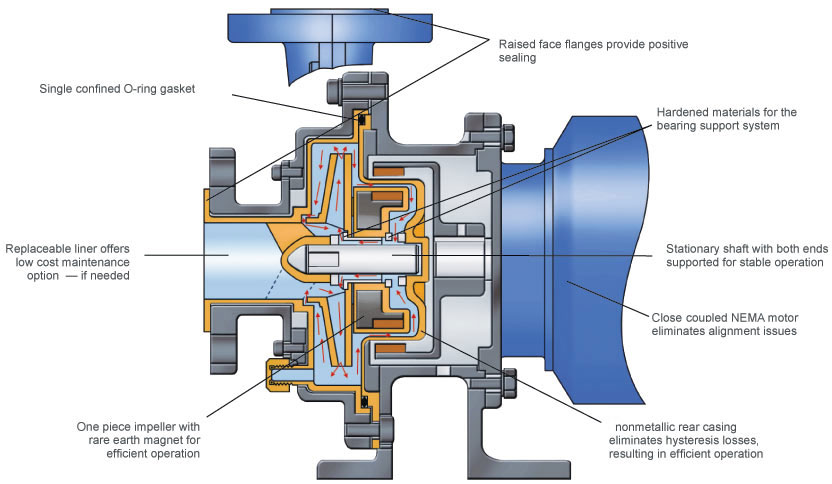

  • Straddle-mounted inner magnet system with bearings on both sides of the magnet - this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
  • Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
  • Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 8% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
  • Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
  • Special high-temperature construction is available to handle up to 800°F
  • Several dual containment systems are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals

Materials of Construction

  • ETFE Lined
  • Kynar® Lined
  • PVDF

Registered trademark of Arkema, Inc.

Request a Phone Call

Full Name

Phone Number

Email

Please Contact Me Regarding

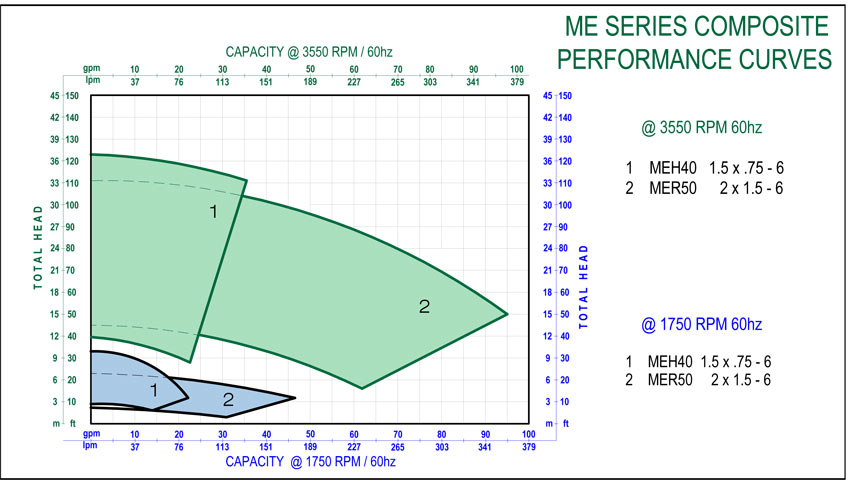

MAGNATEX® ME Series Specifications

Maximum Flow 90 GPM
Maximum Head 140 FT
Liquid Temperature 32°F to 195°F
Maximum Power 3 HP
Connections 125lb RF Flanges
Bearings C-PTFE, G-PTFE, SiC, Carbon
Shaft Ceramic SiC
Working Pressure 70 psig
Impeller Enclosed
Speeds Up to 3550 rpm
Magnets Rear Earth
Motor NEMA or IEC Frame Mounted
